Product Highlights
- Type: Static Mixer Nozzle
- Brand: Infinity Bond
Save on the 161-224 Static Mixer Nozzle from Infinity Bond
We're not claiming to have invented the design for the 161-224 adhesive static mix nozzle. We are however making the 161-224 mixer in the USA and selling it at significant savings over some of our big name competitors.

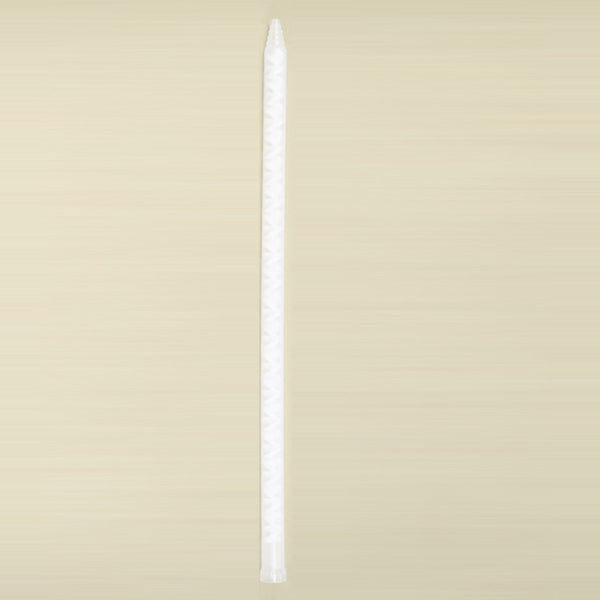

The 161-224 disposable static mixer is a high quality 24 element nozzle made from high quality polypropylene (casing) and high strength polyacetal (elements). This mixer has a bell connection, stepped tip and works great with 1:1 and 2:1 adhesives, especially lower viscosity adhesives or with meter mix machines.
Compare the Infinity Bond 161-224 Adhesive Static Mixer To:
- TAH 161-224
- Nordson 7701010
161-224 Static Mixer Specifications
- Mixing Elements: 24
- Inner Diameter (ID): ~13mm
- Outer Diameter (OD): ~16mm
- Length: ~293 or 11.55 Inches
- Connection Type: Bell

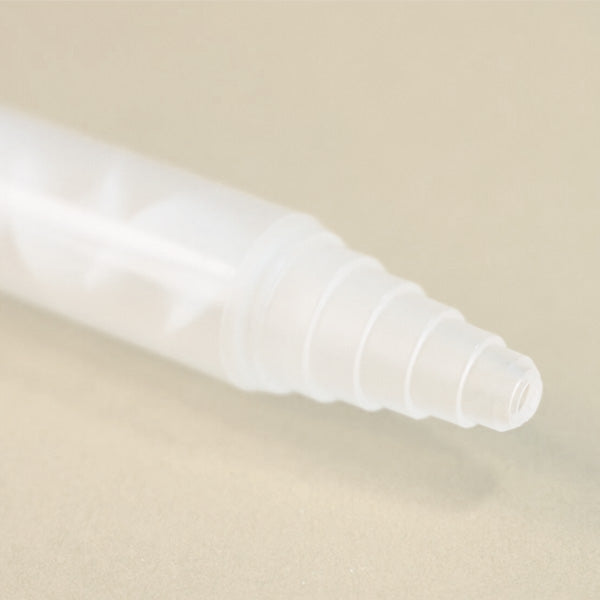

- Nozzle Type: Stepped
